Small Sewage Treatment Plant (STP)
Small sewage treatment plants are used for the biological treatment of domestic sewage and similar industrial wastewater. STPs can treat wastewater from residential, public buildings and institutions. There are many different types of sewage treatment plants. We can customize them if you need.
Standardized domestic sewage treatment plants: Above-ground & Underground
Newly upgraded solar-powered domestic sewage treatment plant
Sewage Treatment Plant costing
How much does a small sewage treatment plant cost? In order to calculate the cost accurately, we recommend that you fill out a questionnaire and then we will be able to prepare a commercial offer, taking into account all the features of your project. We are always ready to provide you with detailed information about the different models, their technical characteristics, performance. We offer a full range of services, from advice and assistance in selecting equipment to its supply, installation and configuration. Our goal is to provide you with the necessary equipment to effectively solve the water treatment problem in your specific situation.
So, you need to email us at info@wteya.com
Our manager will prepare an excellent quote for you
Where is it used?
Small sewage treatment plants (hereinafter referred to as STPs) are used to treat domestic sewage and other sewage with similar components (such as food companies, some chemical companies, microbial companies and pharmaceutical companies). Block modular installations are particularly popular because they are delivered plant-ready, which allows you to significantly reduce turnkey installation and commissioning times.
It is widely used in residential areas, tourist attractions, rural areas, public facilities (such as schools, hospitals, hotels, etc.), temporary facilities (such as construction site camps, outdoor adventure bases, etc.). It is very convenient to solve all domestic sewage.
How it works

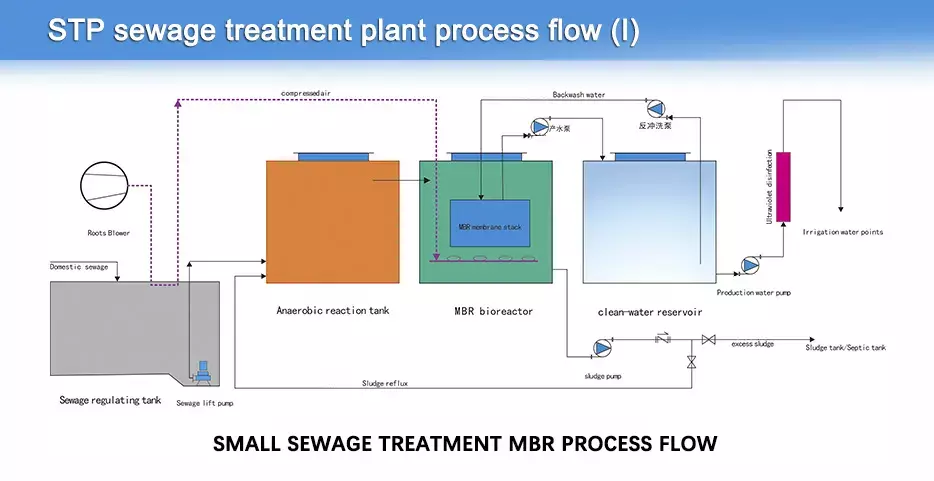

Domestic sewage treatment plants use the "A2O+MBR+UV disinfection" process.
The A2O+MBR process is a sewage treatment process that combines A2O (anaerobic-anoxic-aerobic) and MBR (membrane bioreactor) technology and is widely used in domestic sewage treatment. This process effectively removes pollutants such as organic matter, nitrogen and phosphorus in sewage through the synergistic effect of three stages: anaerobic, anoxic and aerobic. The A2O process achieves the degradation of organic matter in sewage and the removal of nitrogen and phosphorus by controlling the dissolved oxygen concentration and sludge return at different stages.
The MBR system of a small sewage treatment plant uses membrane filtration to achieve solid-liquid separation and intercept activated sludge and macromolecular organic matter. The produced water flows out after membrane filtration, and the water quality is significantly improved.
In practical applications, the A2O+MBR process can stably meet the Class A standard and is suitable for water needs such as flushing toilets and greening. The STP process also has the advantages of simple treatment, small footprint and stable operation.
Product Parameters
|
Model |
Daily Processing Capacity (t/d) |
External Dimensions (mm) |
Installed Power (kw) |
Equipment Weight (t) |
||
|
L |
W |
H |
||||
|
WTY-SH-0250 |
2.5 |
3240 |
1540 |
1870 |
1.9 |
1.5 |
|
WTY-SH-0500 |
5.0 |
3540 |
2040 |
2170 |
2.6 |
2.0 |
|
WTY-SH-1000 |
10.0 |
7080 |
2040 |
2170 |
2.6 |
3.9 |
What advantages does it have
We offer a full range of services, from advice and assistance in selecting equipment to its supply, installation and configuration.Our aim is to provide you with the necessary equipment to effectively solve the water treatment problems in your specific situation.
Integrated Design
Compact design, small footprint, flexible deployment, easy transportation and installation.
Remote Monitoring
Check the equipment operating status at any time to improve operational efficiency.
Fault Alarm
Predict abnormal situations in the sewage treatment process and issue early warnings.
PLC Touch Screen
One screen to understand the water use situation, convenient for staff to monitor and control.
